1inch Ball Valve Stainless Steel Sanitary 1PC 316 Anti Corrosion Pneumatic Valve

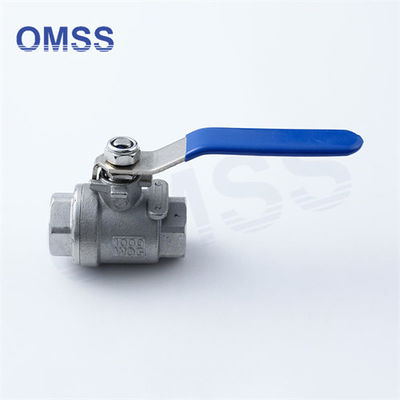

Large Image : 1inch Ball Valve Stainless Steel Sanitary 1PC 316 Anti Corrosion Pneumatic Valve

Product Details:

Place of Origin:	WenZhou,ZheJiang,China
Brand Name:	ONEMO
Certification:	3A、ISO
Model Number:	1"

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	/
Packaging Details:	Export Package - Carton Box / Plywood Case / Wooden Case
Payment Terms:	T/T、L/C
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

1inch Ball Valve Stainless Steel Sanitary 1PC 316 Anti Corrosion Pneumatic Valve

Description

Type::	Ball Valves	Customized Support::	OEM,ODM
Port Size:	1/2"-12"	Valve Body Material::	SS304/SS316L
End Connection::	Weld,clamp,thread,weld Thread,flange	Gasket::	EPDM,Silicone Or PTFE
Working Temperature Range:	-20℃—+135℃	Max Working Pressure::	1000Kpa/10Bar
Application Scope::	Dairy,food, Beverage, Pharmacy, Cosmetic, Chemical, Etc	Operating Principles::	Sensor, Pneuamtic Actuator(single Acting, Double Acting), Electric Actuato, C-TOP, C-top Controller(AS-I)
High Light:	1PC Sanitary Ball Valve , Anti Corrosion Pneumatic Ball Valve , 1inch Ball Valve

1inch Stainless Steel Sanitary Ball Valve 1PC Ball Valve ball valve stainless steel 316

Key Features

Compact Design: The one-piece construction reduces the number of potential leak paths and offers a more compact and robust design.
Corrosion Resistance: Stainless Steel 316 construction provides superior resistance to corrosion, making the valve suitable for demanding environments.
High Cleanliness: Sanitary design ensures easy cleaning and maintenance, preventing contamination in sensitive applications.
Automated Operation: Pneumatic actuation allows for easy integration into automated systems, enhancing efficiency and control.
Durability: High-quality materials and robust design ensure long service life even in harsh conditions.

Applications

Food and Beverage Processing: Maintains high hygiene standards and ensures contamination-free processes.
Pharmaceutical and Biotech: Ensures sterile conditions necessary for drug and biological product manufacturing.
Chemical Processing: Handles corrosive chemicals effectively without degrading.
Water Treatment: Efficiently controls the flow of water and wastewater in treatment facilities.

Installation and Maintenance

Installation: Follow the manufacturer's guidelines to ensure correct installation. The valve should be installed in a manner that allows for easy access to the pneumatic actuator for maintenance.
Maintenance: Regularly check for air leaks in the pneumatic actuator, inspect seals, and ensure the valve operates smoothly. While the one-piece design offers fewer points of failure, it also means internal parts are not as easily replaceable as in multi-piece designs.

Conclusion

A 1-inch, 1PC stainless steel sanitary ball valve made from stainless steel 316, equipped with a pneumatic actuator, is a robust and versatile valve. It is ideal for applications requiring high levels of cleanliness, corrosion resistance, and automation. Its compact design and high durability make it a reliable choice for industries such as food and beverage processing, pharmaceuticals, biotech, chemical processing, and water treatment. The pneumatic actuation further enhances its usability by allowing precise and remote control of the valve.

Product Name:	1"Stainless Steel Sanitary 1PC Ball Valve
Application :	Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health Materials engineering and many other industries
Operating principles	Driven by the actuator stem 90° rotation,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow
Technical Standards	Request non-retention
	Designed and manufactured according to GB/T12237-2007 standard requirements
	Length of the structure according to GB/T12221-2005 standard requirements
	Connection clamp,welding by DIN,ISO
	Temperature and pressure level according to GB.T 12224-2005 standard requirements
	Inspection and test according to GB/T 26480 standard requirements
Application scope:	Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health Materials engineering and many other industries
Technical Data	Maximum product pressure:1600kpa(16bar)
	Minimum product pressure:full vacuum
	Recommended maximum pressure during braking:600kpa(6bar)
	Operating modes:manual,pneumatic,electric
	Maximum sterilization temperature,short time:+200℃

Valve Dimensions
1inch Ball Valve Stainless Steel Sanitary 1PC 316 Anti Corrosion Pneumatic Valve 0

1inch Ball Valve Stainless Steel Sanitary 1PC 316 Anti Corrosion Pneumatic Valve 1

1inch Ball Valve Stainless Steel Sanitary 1PC 316 Anti Corrosion Pneumatic Valve 2

Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health

Materials engineering and many other industries
