Product Details:
|
| Type:: | Ball Valves | Customized Support:: | OEM,ODM |
|---|---|---|---|
| Port Size: | 1/8"-1" | Valve Body Material:: | SS304/SS316L |
| End Connection:: | Threaded | Gasket:: | EPDM,Silicone Or PTFE |
| Working Temperature Range: | 120 Degree C | Max Working Pressure:: | 1000Kpa/10Bar |
| Application Scope:: | Dairy,food, Beverage, Pharmacy, Cosmetic, Chemical, Etc | Operating Principles:: | Sensor, Pneuamtic Actuator(single Acting, Double Acting), Electric Actuato, C-TOP, C-top Controller(AS-I) |
| High Light: | 1/4" sanitary ball valve,316l stainless steel mini ball valve,ss304 male female valve |
||

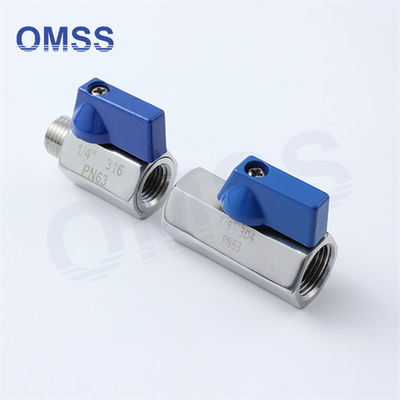

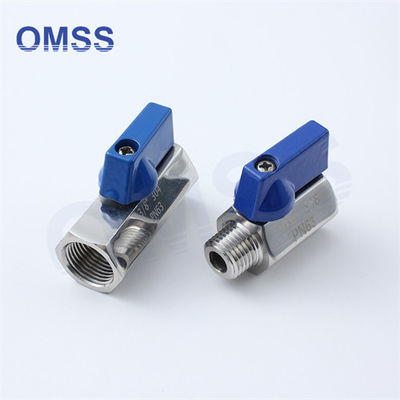

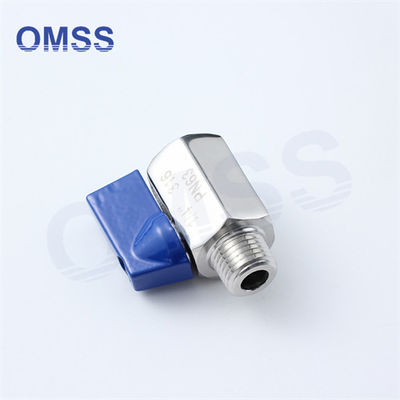

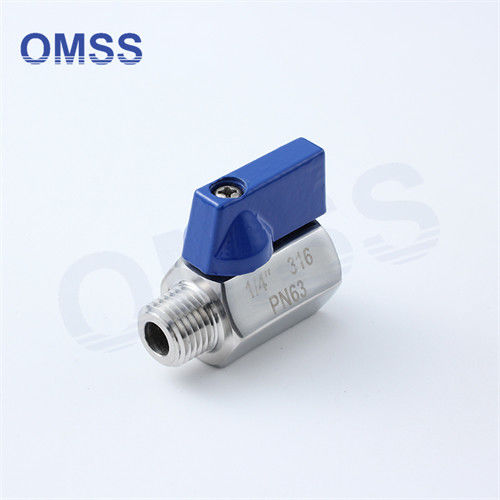

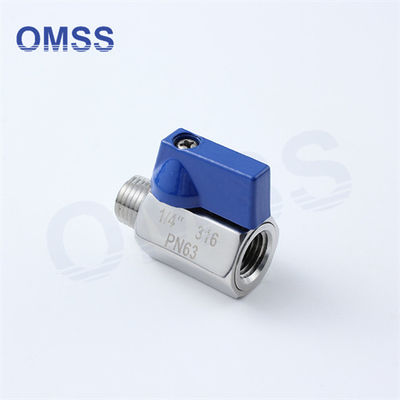

Sanitary 1/4 Inch Mini Male Female Ball Valve stainless steel ball valve
|
Product Name: |
Sanitary 1/4 Inch Mini Male Female Ball Valve |
|
Application : |
Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health Materials engineering and many other industries |
|
Operating principles |
Driven by the actuator stem 90° rotation,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow |
|
Technical Standards |
Request non-retention |
|
Designed and manufactured according to GB/T12237-2007 standard requirements |
|
|
Length of the structure according to GB/T12221-2005 standard requirements |
|
|
Connection clamp,welding by DIN,ISO |
|
|
Temperature and pressure level according to GB.T 12224-2005 standard requirements |
|
|
Inspection and test according to GB/T 26480 standard requirements |
|
|
Application scope: |
Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health Materials engineering and many other industries |
|
Technical Data |
Maximum product pressure:1000kpa(10bar) |
|
Minimum product pressure:full vacuum |
|
|
Recommended maximum pressure during braking:600kpa(6bar) |
|
|
Operating modes:manual,pneumatic,electric |
|
|
Maximum sterilization temperature,short time:+120℃ |
Valve Dimensions
Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health
Materials engineering and many other industries
