applications where maintaining a vacuum seal is critical. Here’s a brief overview of the different components mentioned:

KF Single Pin Clamp Vacuum Fitting

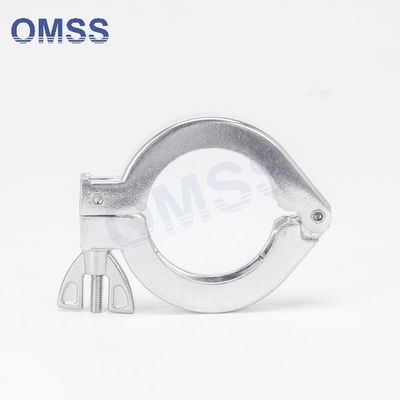

Single Pin Clamp: This clamp is used to secure two KF flanges together, ensuring a tight vacuum seal. It typically includes a wingnut or bolt mechanism that allows for easy tightening and release.
Vacuum Fitting: Refers to the components that connect different parts of a vacuum system, ensuring a leak-proof seal.
KF Sizes
KF16: This size refers to the outer diameter of the flange, which is approximately 1.6 inches (40 mm).
KF25: The outer diameter of this flange is approximately 2.5 inches (64 mm).
KF40: The outer diameter is approximately 4.0 inches (100 mm).
KF50: The outer diameter is approximately 5.0 inches (128 mm).
Vacuum Aluminum Tri Clamp
Tri Clamp: Also known as a tri-clover clamp, this is a type of clamp used to secure sanitary fittings, commonly found in the food, beverage, and pharmaceutical industries. In vacuum applications, it ensures a secure and clean connection between components.
Aluminum: Indicates that the clamp is made from aluminum, providing a lightweight and corrosion-resistant option.
Components and Use
Flanges: The KF flanges come in the aforementioned sizes and are used to connect various components of a vacuum system. They are designed to be leak-proof and are easy to connect and disconnect.
Clamps: Single pin clamps or tri clamps are used to secure the flanges together. These clamps provide the necessary force to maintain a vacuum seal.
Sealing Rings: Often made of elastomer (like Viton or Buna-N), these are placed between the flanges to ensure a tight seal.
Applications
Laboratory Equipment: Used in systems where maintaining a vacuum is crucial, such as in vacuum chambers, cryogenic systems, and electron microscopes.
Industrial Processes: Applied in vacuum distillation, freeze-drying, and other processes requiring a controlled vacuum environment.
Pharmaceuticals and Food Industry: Ensures sanitary connections and easy cleaning, important in environments requiring high levels of hygiene.
