KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings

KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings
KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings

Large Image :  KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings

Product Details:
Brand Name: ONEMO
Certification: ISO
Model Number: KF 25
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: /
Packaging Details: Export Package - Carton Box / Plywood Case / Wooden Case
Payment Terms: L/C, T/T
Supply Ability: 4000 Piece/Pieces per Month

KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings

Description
Customized: OEM Size: KF10~KF50
Material:: Stainless Steel Application Scope:: Vacuum Fitting,Dairy,food, Beverage, Pharmacy, Cosmetic, Chemical, Etc
High Light:

weld stub car vacuum pipe fittings

,

kf50 vacuum flange fittings

,

kf25 vacuum pipe fittings

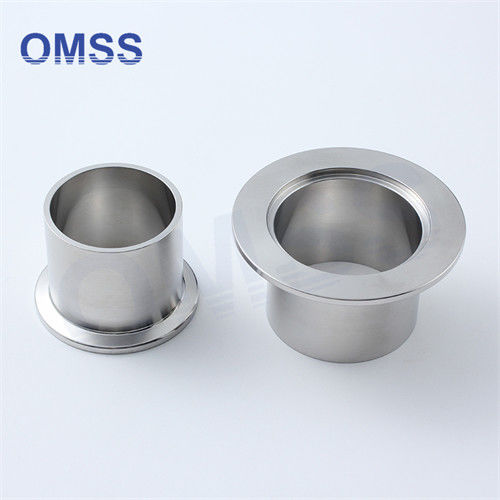

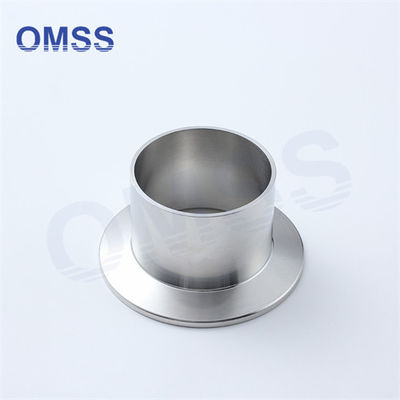

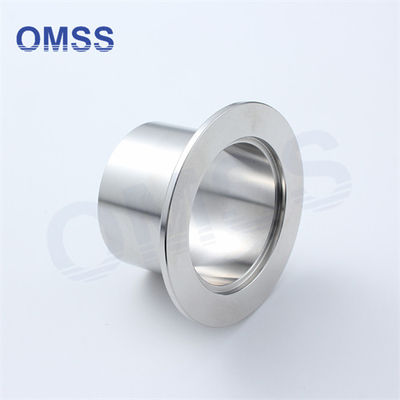

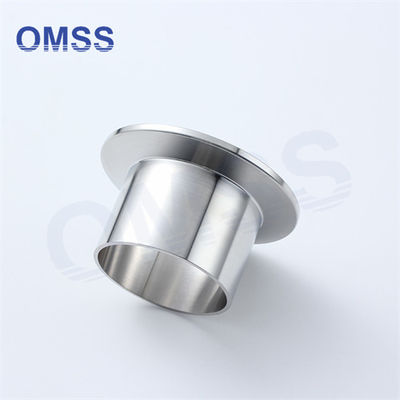

ISO-KF 25 Stainless Steel Weld Stub Flange Vacuum fittings



Product Name: ISO-KF 25 Stainless Steel Weld Stub Flange Vacuum fittings
Material: SS304/SS316L
Seal Material: Viton
Availably Size: KF10-KF50
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc




Specifications:

KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings 0

Features:



KF 25 Car Vacuum Pipe Fittings Stainless Steel Weld Stub Vacuum Flange Fittings 1



  The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp.

  There are a variety of clamp choices in the Series 31 line. The wing-nut clamp is hand tightened until metal contact is felt. A version of the wing-nut clamp with a washer is also available. The toggle clamp is convenient and easy to use. The clamp provides enough sealing force to fully compress the O-Ring, so that the flanges and the centering ring are metal to metal. The heavy-duty spring supports the full range of production tolerance variables. The self-adjusting clamp locks in a positive method. A pin can be inserted to prevent accidental release of the toggle lever.   The toggle clamps are ideal for situations where the clamp must be removed frequently, like leak testing or gauge calibration. The Series 31 ISO-KF line also includes bulkhead clamps. They are used to attach an ISO-KF flange directly to a chamber or base plate. The two-part, bolted clamp fits over the flange. A centering ring assembly is needed between the flange and the opening. The bulkhead clamp kit includes the two-piece clamp, bolts and washers.
