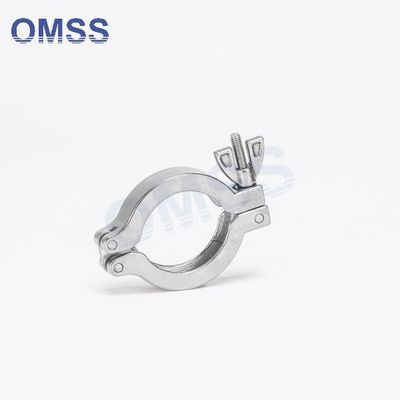

KF Single Pin Clamp Vacuum Fitting KF16 KF25 KF40 KF50 Vacuum Aluminum Tri Clamp

KF Single Pin Clamp Vacuum Fitting KF16 KF25 KF40 KF50 Vacuum Aluminum Tri Clamp

The term "KF Single Pin Clamp Vacuum Fitting KF16 KF25 KF40 KF50 Vacuum Aluminum Tri clamp" refers to a specific type of vacuum fitting used in low to medium vacuum applications. Let's break down the different components and their meanings:

1. KF Single Pin Clamp: KF stands for Klein Flansch, which is also known as the QF or Quick Flange standard. The single pin clamp is a type of fastening mechanism used to secure the flange connections. It allows for quick and easy assembly and disassembly of the vacuum system.

2. Vacuum Fitting: This term refers to a component used for connecting and sealing elements in a vacuum system. In this case, it specifically refers to the fitting used in the KF flange system.

3. KF16, KF25, KF40, KF50: These numbers represent different sizes or nominal diameters of the KF flanges. KF16, KF25, KF40, and KF50 are common sizes available in the KF flange system. The numbers correspond to the inner diameter of the flange in millimeters.

4. Vacuum Aluminum Tri clamp: A tri clamp is a type of clamp used to connect and secure two flanges together. In this case, it is made of aluminum, which is a lightweight and relatively low-cost material compared to stainless steel.

In summary, the "KF Single Pin Clamp Vacuum Fitting KF16 KF25 KF40 KF50 Vacuum Aluminum Tri clamp" refers to a vacuum fitting used in the KF flange system. It utilizes a single pin clamp for fastening and is available in different sizes, specifically KF16, KF25, KF40, and KF50. The tri clamp component is made of aluminum, providing a lightweight and cost-effective solution for low to medium vacuum applications.
