Product Details:
|
| Product Name: | Vacuum Flange Blind Plate | Customized: | OEM |
|---|---|---|---|
| Material:: | Stainless Steel | Application Scope:: | Vacuum Fitting,Dairy,food, Beverage, Pharmacy, Cosmetic, Chemical, Etc |
| Medium: | Oil, Gas, Water,acid Liquid | ||
| High Light: | SS304/SS316L Bored Flange,SS304/SS316L Fixed Bolted Bored Flange,ISO-F Fixed Bolted Bored Flange |
||

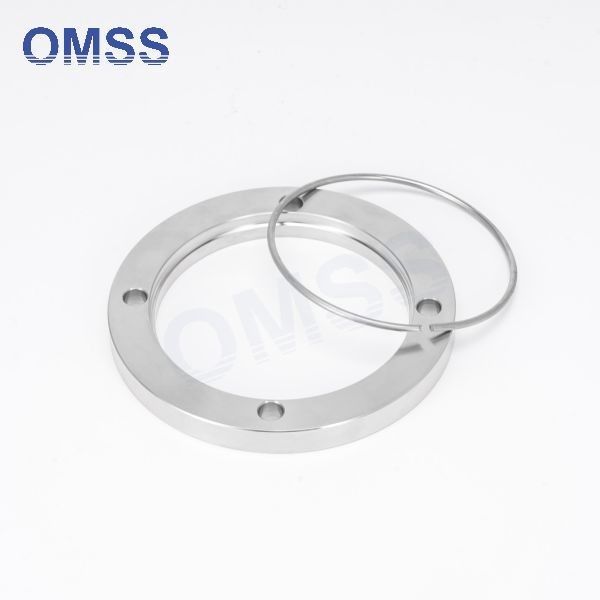

Stainless Steel ISO-F Fixed Bolted Bored Flange SS304/SS316L
These ISO-F DN 63 bored blank flanges follow vacuum technology standards as described in DIN 28404 and ISO 1609. ISO-F fixed flange vacuum fittings have a bolt circle where bolts align the two flanges. A centering ring which contains a rubber elastomeric O-ring is used to form the vacuum seal between the two flange faces. They are commonly used to build process vacuum plumbing and systems for industrial vacuum applications. The ISO standard sizes for large LF flanges are ISO-F DN 63, 80, 100, 160, 200, 250, 320, 400, 500, 630. These vacuum fittings are made of corrosive resistant 304 316L stainless steel.
|
Product Name
|
Sanitary ISO-F 200 Stainless Steel304 316 Bolted Type Weld-On Fixed Vacuum Flange with Bolt Holes | |||
|
Body Material
|
SS304 SS316
|
|||
|
Surface treatment
|
CNC machine Ra<0.8μm
|
|||
|
Length
|
20mm,30mm,40mm,other lengths can be made | |||
|
Size
|
ISO63-ISO630. other size could be customized
|
|||
|
Norms
|
USA,EURO.JIS
|
|||
| Delivery time | Common size are in large stock.Production lead time is about 10 days | |||
