Product Details:
|
| Type:: | Tank Accessories | Customized Support:: | OEM,ODM |
|---|---|---|---|
| Port Size:: | 1/2"-6" Or DN10-DN150 | Body Material:: | 1.4404/1.4301, SS304/SS316L(Forged) |
| Glass:: | Tempered Glass | Surface Finishing: | CNC RA 0.5 To 0.8 Um |
| Seal Material:: | NBR,EPDM,FPM | Working Temperature Range:: | -10℃ To 200℃(Silicone) |
| Max Working Pressure:: | 10bar | Application Scope:: | Dairy,food, Beverage, Pharmacy, Cosmetic, Chemical, Etc |
| High Light: | dn150 sanitary sight glass,dn10 sanitary tank sight glass,epdm sealing observation glass |
||

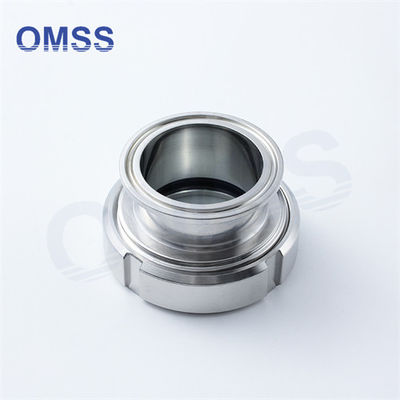

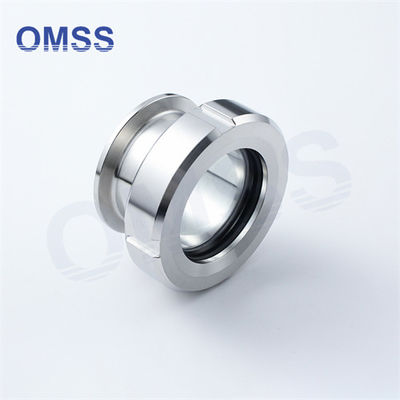

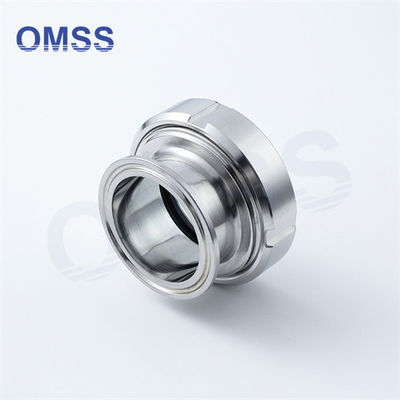

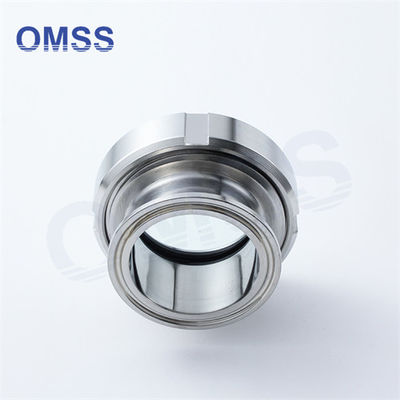

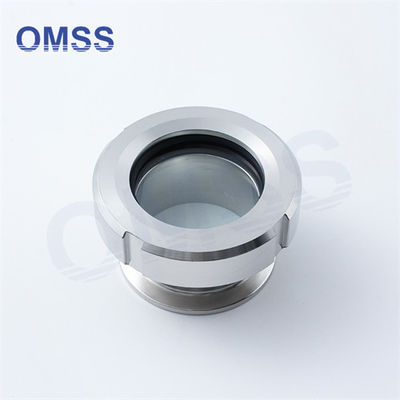

Sanitary Stainless Steel Clamp Sight Glasses with union,types of tank
| Product Name | Sanitary Stainless Steel Clamp Sight Glass with union | |
| Material | Steel parts | SS304 or SS316L |
| The material of glass | silicon boride glass(straight sight glass) silicon boride glass or tempered glass(sight glass with union) | |
| Sealing elements | EPDM(standard) NBR,PTFE(optional) | |
| Working temperature | -20~+135℃(when the sealing is EPDM) | |
Specifications:
Application:
The sight glass is widely used in food,wine-produceing,beverage,and pharmacy industries etc.for it is convenient to view the condition of equipment running state and system work state.
Standard design:
OMSS have straight sight glass,sight glass with lamp and cross sight glass.he straight sight glass can be installed in horizontal or vertical,it also can 360° view through the glass defence. It is suitable for on-line view of the pipeline.Sight glass with lamp is a type of sight glass with union,it can work under the dark light according the lamp,and disassembling easy.So it is suitable to the view of tank equipment.
As well as optimizing the process, OMSS provides an extensive range of options for enhancing the tank itself. These include machine feet and tank feet in a wide variety of constructions, sight glasses with and without halogen light fixtures, and a broad selection of tank covers. We have over 50 different types of tank covers, with a range of shapes and sizes to meet every need. OMSS tank covers are available for both standard and pressure vessels.
